Denon

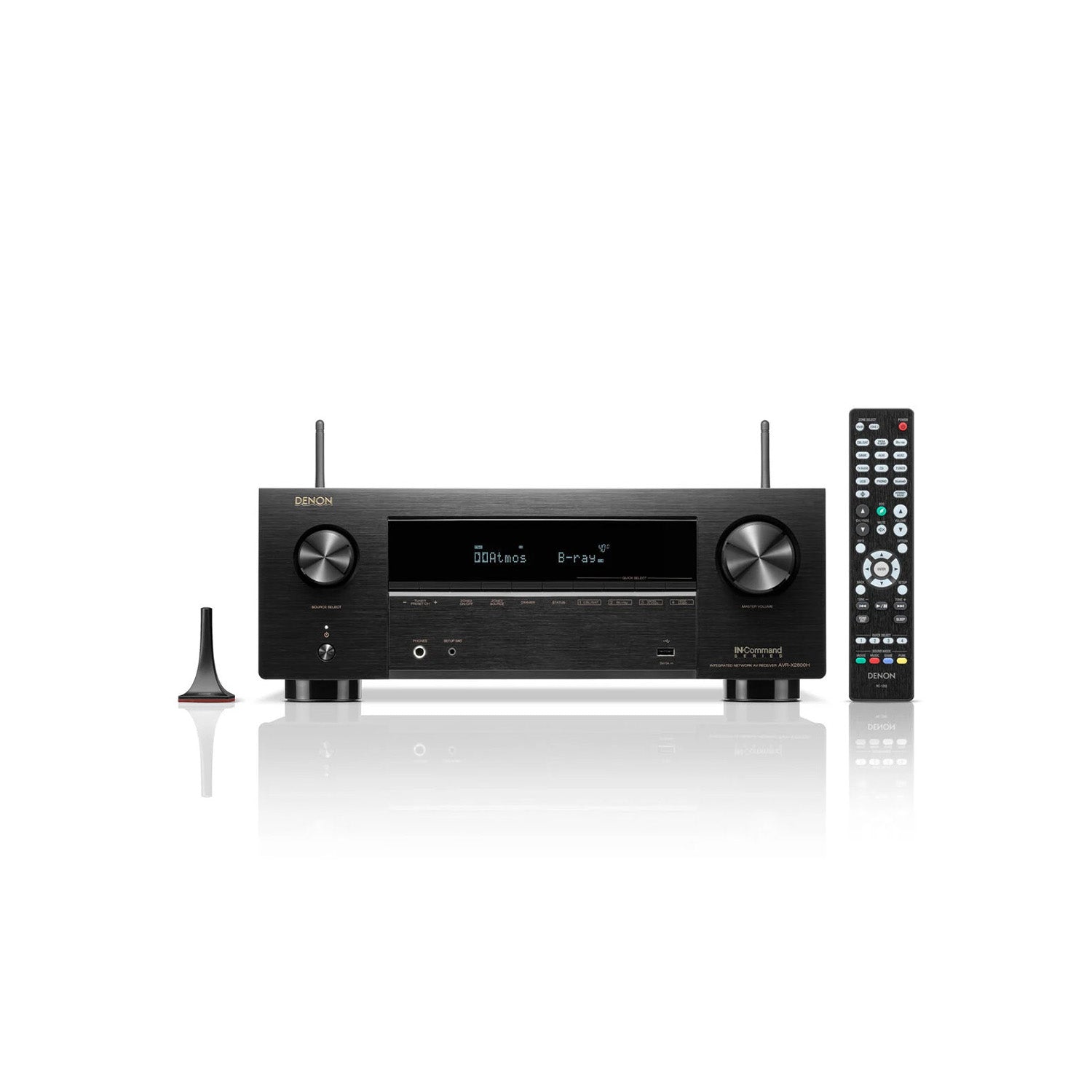

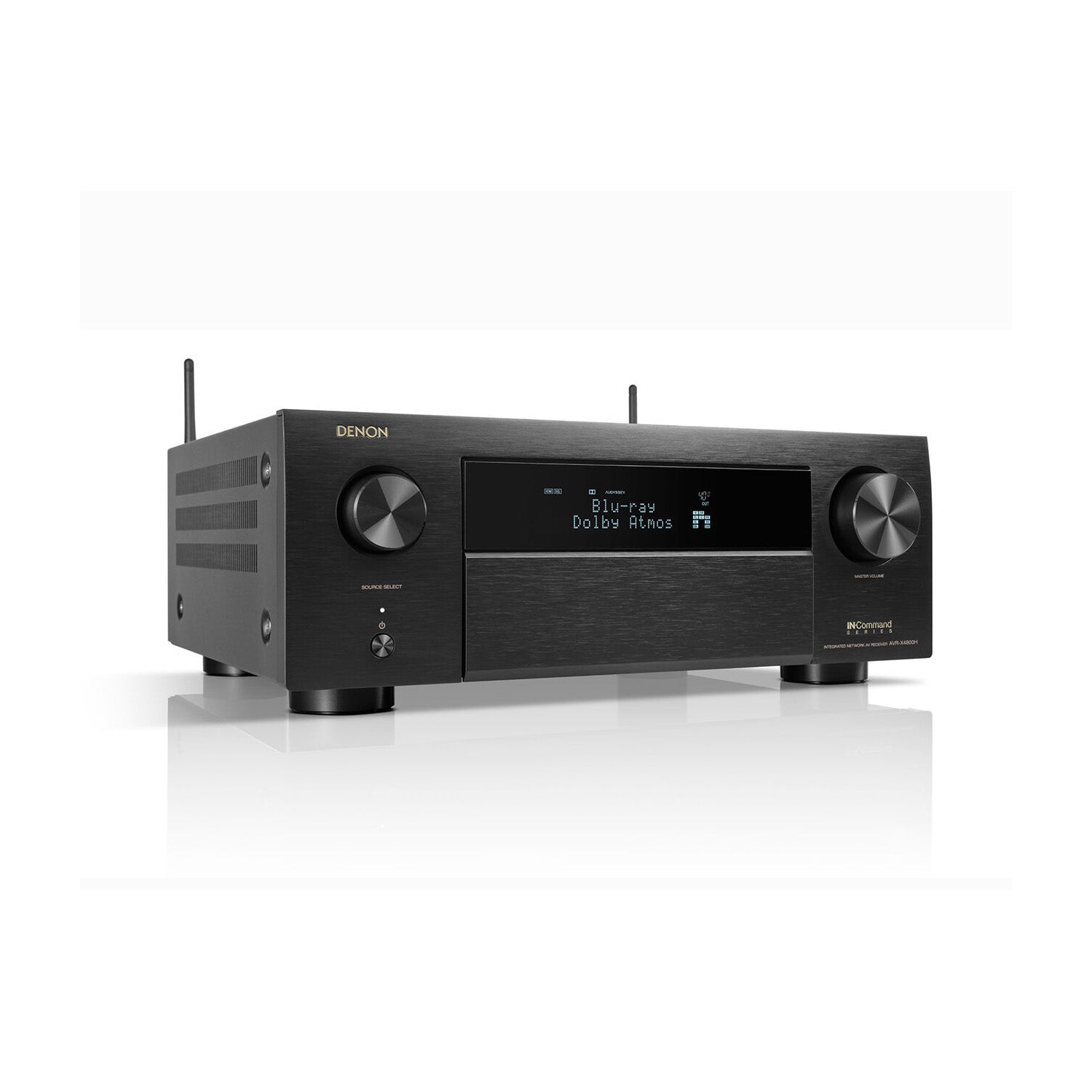

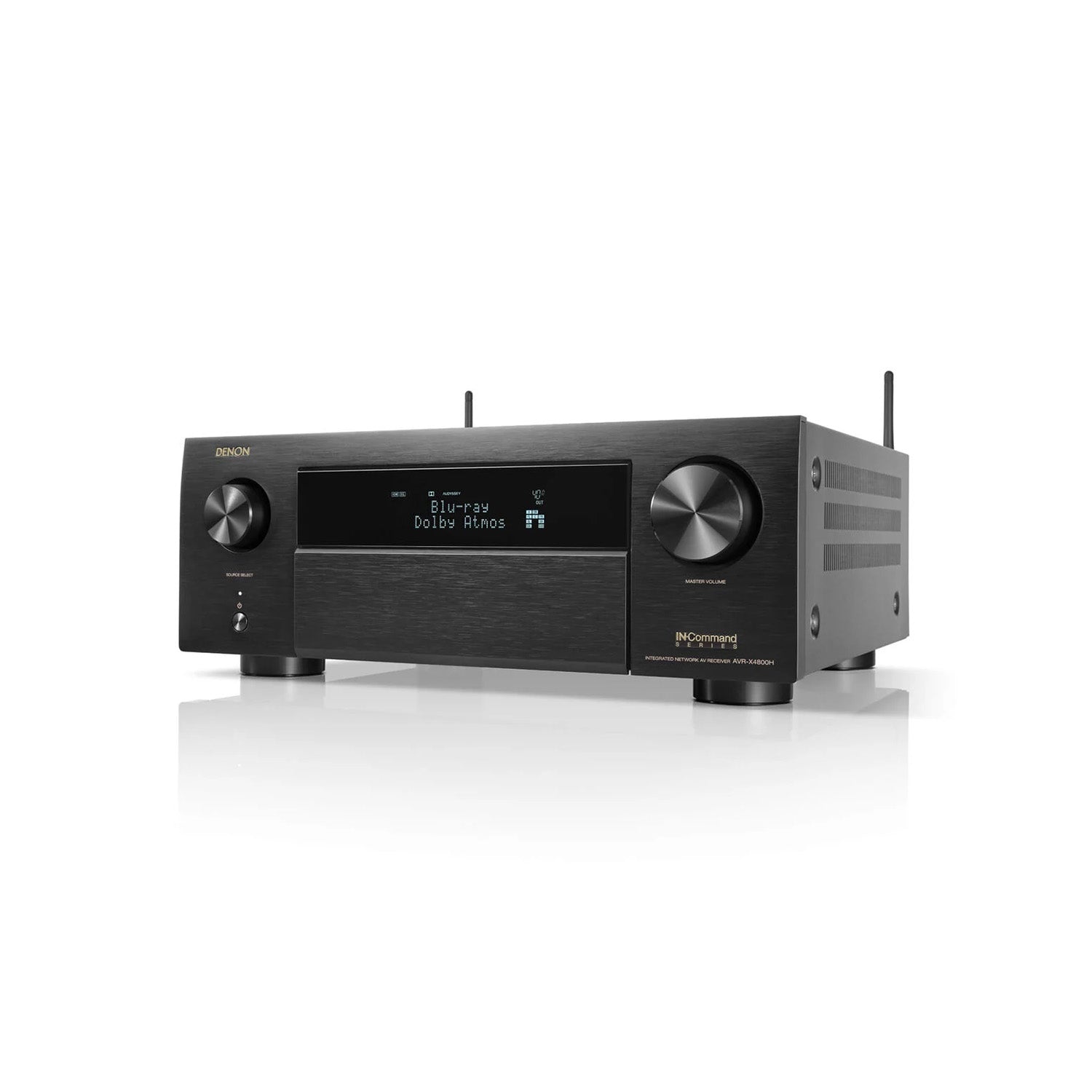

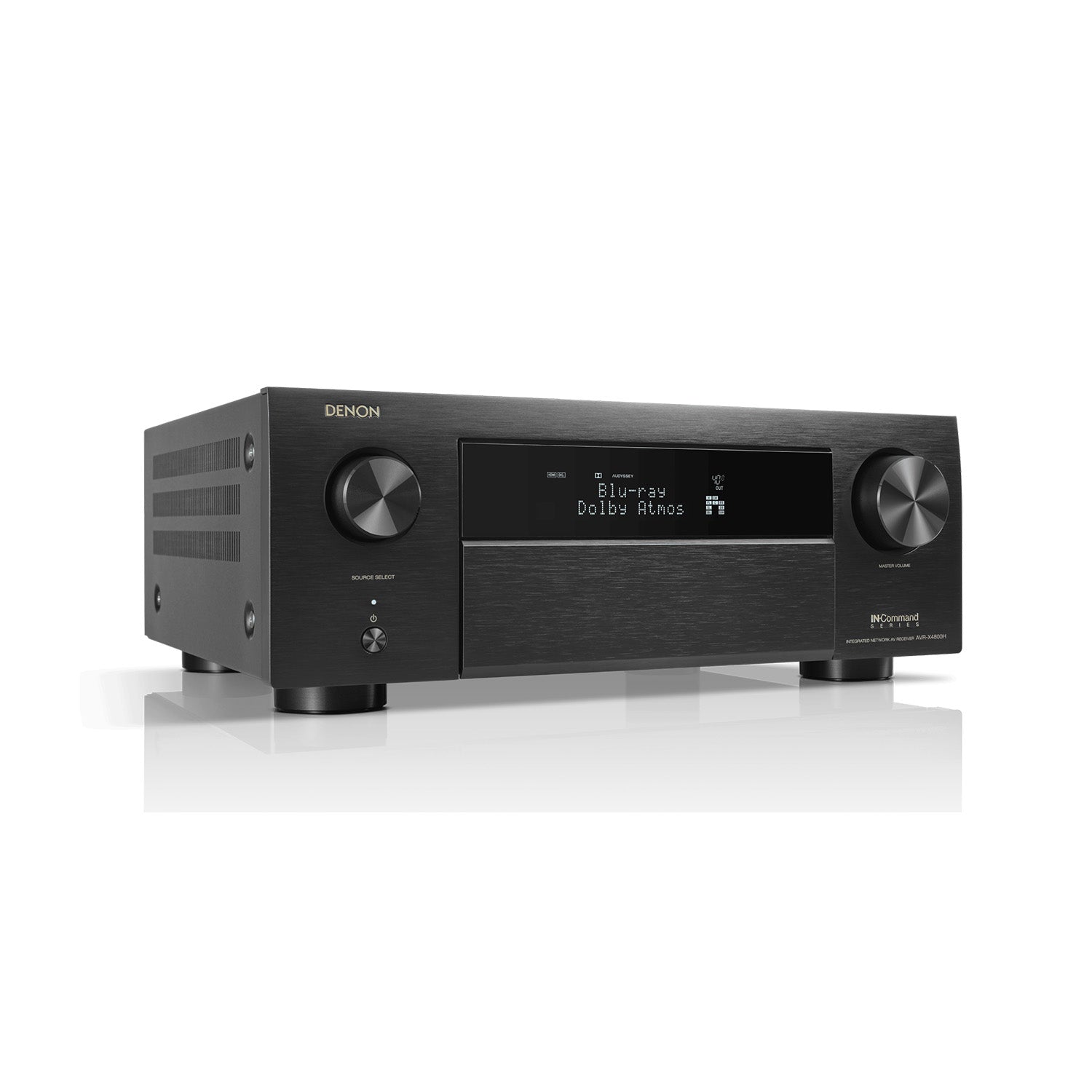

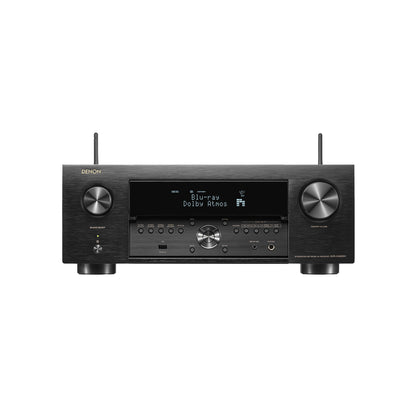

Denon AVR-X4800H AV Receiver
Denon AVR-X4800H AV Receiver
Regular price
$4,299.00 AUD
Regular price
Sale price
$4,299.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

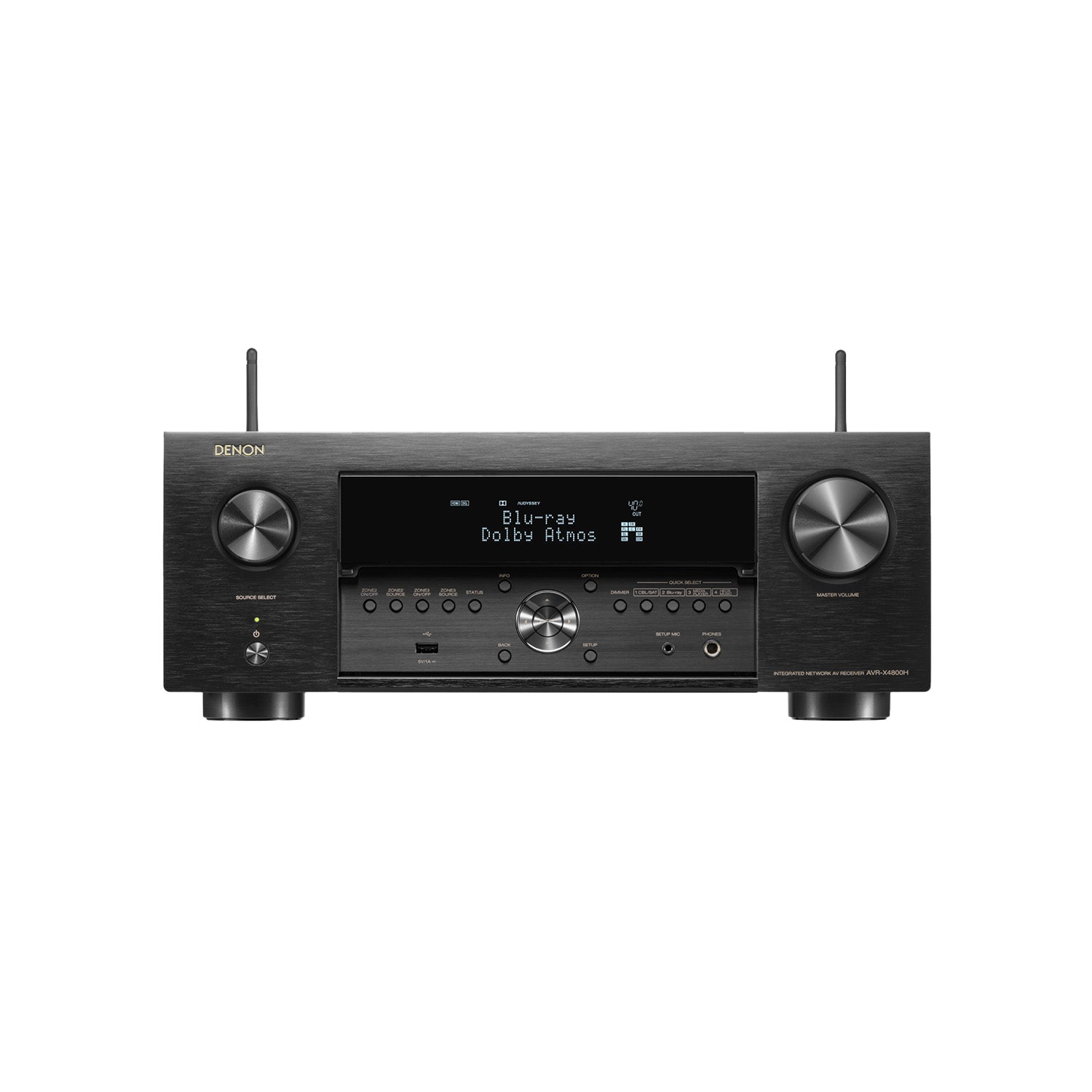

DENON AVR-X4800H RECEIVER
Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favourite music.
Specifications
- 9.4 channels
- 125 watts per channel
- 8K Ultra HD
- 3D Audio
- HEOS Built-in
- Dirac Live Ready
Key Features
Multichannel Surround
- DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, No
- DTS Neo:X, DTS Neural:X: No, Yes
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby Surround: No, Yes
- Auro 3D: Yes
- 360 Reality Audio / MPEG H: Yes, Yes
- Multichannel Stereo: Yes
- Max. Number of Processing (Pre-Amp) Channels: 11.4
- DTS HD Master, DTS:X, DTS:X Pro: Yes, Yes, No
- DTS Neo:X, DTS Neural:X: No, Yes
- DTS Virtual:X: Yes
- IMAX Enhanced: Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Yes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby Surround: No, Yes
HDMI
- HDMI Inputs: Back, Front: 7, No
- HDCP2.3 support: Yes
- HDMI Outputs: Main, Zone: 2, 1
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes , Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
- Variable Refresh Rate, Quick Frame Transport, Quick Media Switching: Yes, Yes, No
- 3D Signal Pass-through: Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
- DSD Audio Capability: Yes
- Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
- Auto LipSync: Yes
- HDMI Inputs: Back, Front: 7, No
- HDCP2.3 support: Yes
- HDMI Outputs: Main, Zone: 2, 1
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB: Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR: Yes , Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
- Variable Refresh Rate, Quick Frame Transport, Quick Media Switching: Yes, Yes, No
- 3D Signal Pass-through: Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay: Yes, Yes, Yes
- DSD Audio Capability: Yes
- Audio Return Channel (ARC), Enhanced ARC: Yes, Yes
- Auto LipSync: Yes
- Auro 3DYes
- 360 Reality Audio / MPEG H: Yes, Yes
- Multichannel Stereo: Yes
- Max. Number of Processing (Pre-Amp) Channels: 11.4
Sound Enhancements

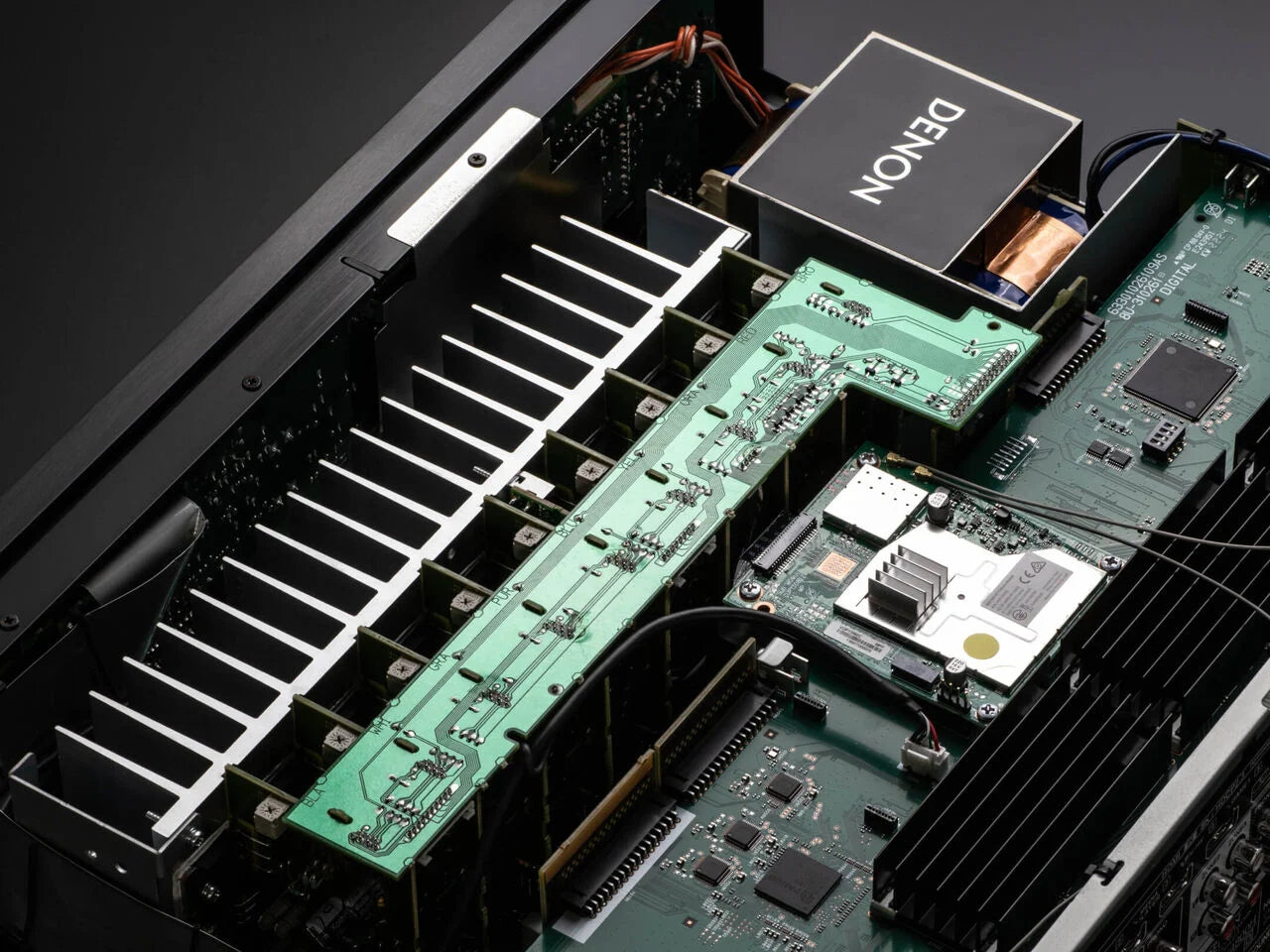

- Discrete Power Amplifier: Yes

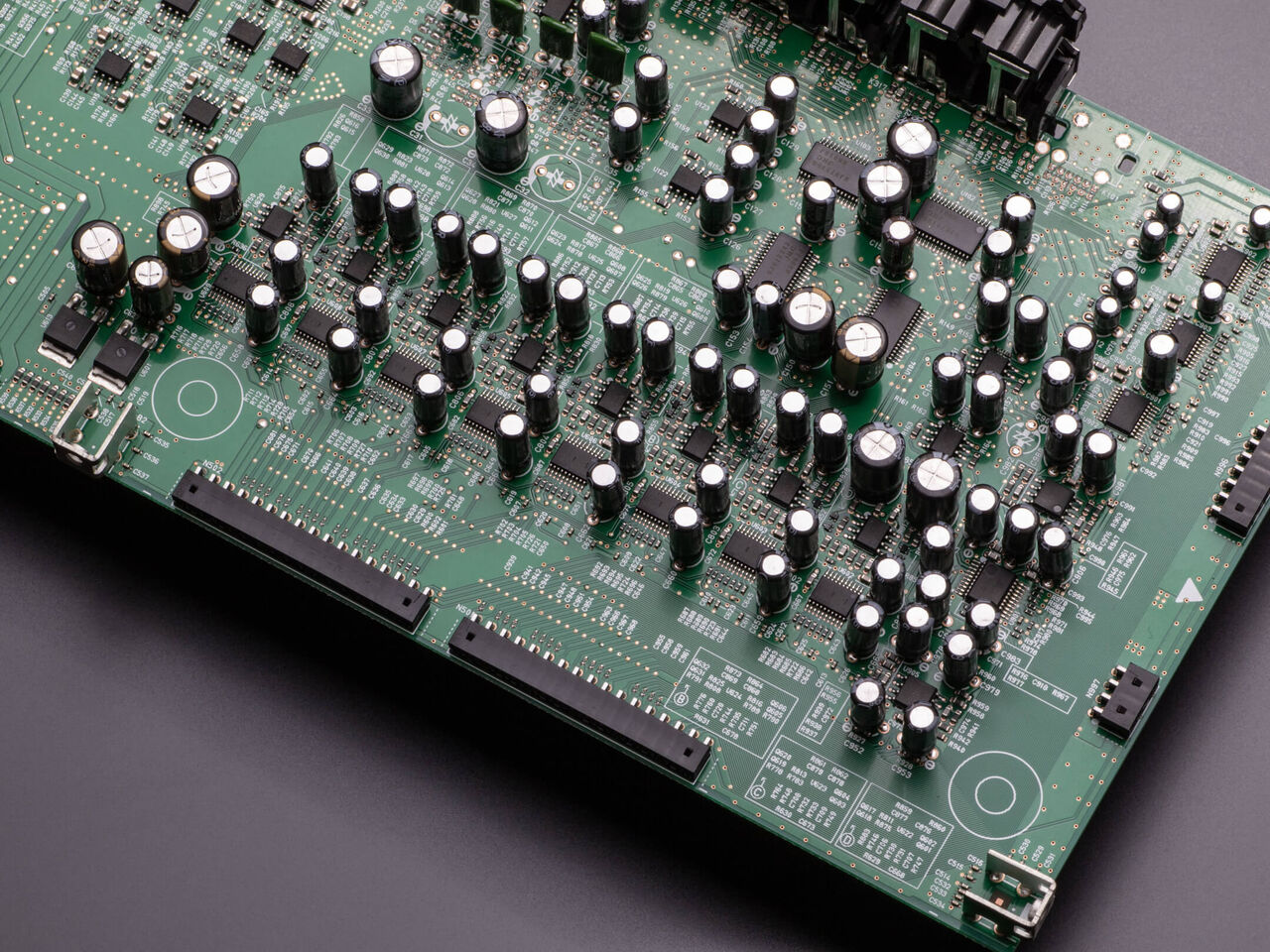

- D.D.S.C. HD Digital: Yes (32 bit)
- Pure Direct: Yes
- Clock Jitter Reducer: Yes

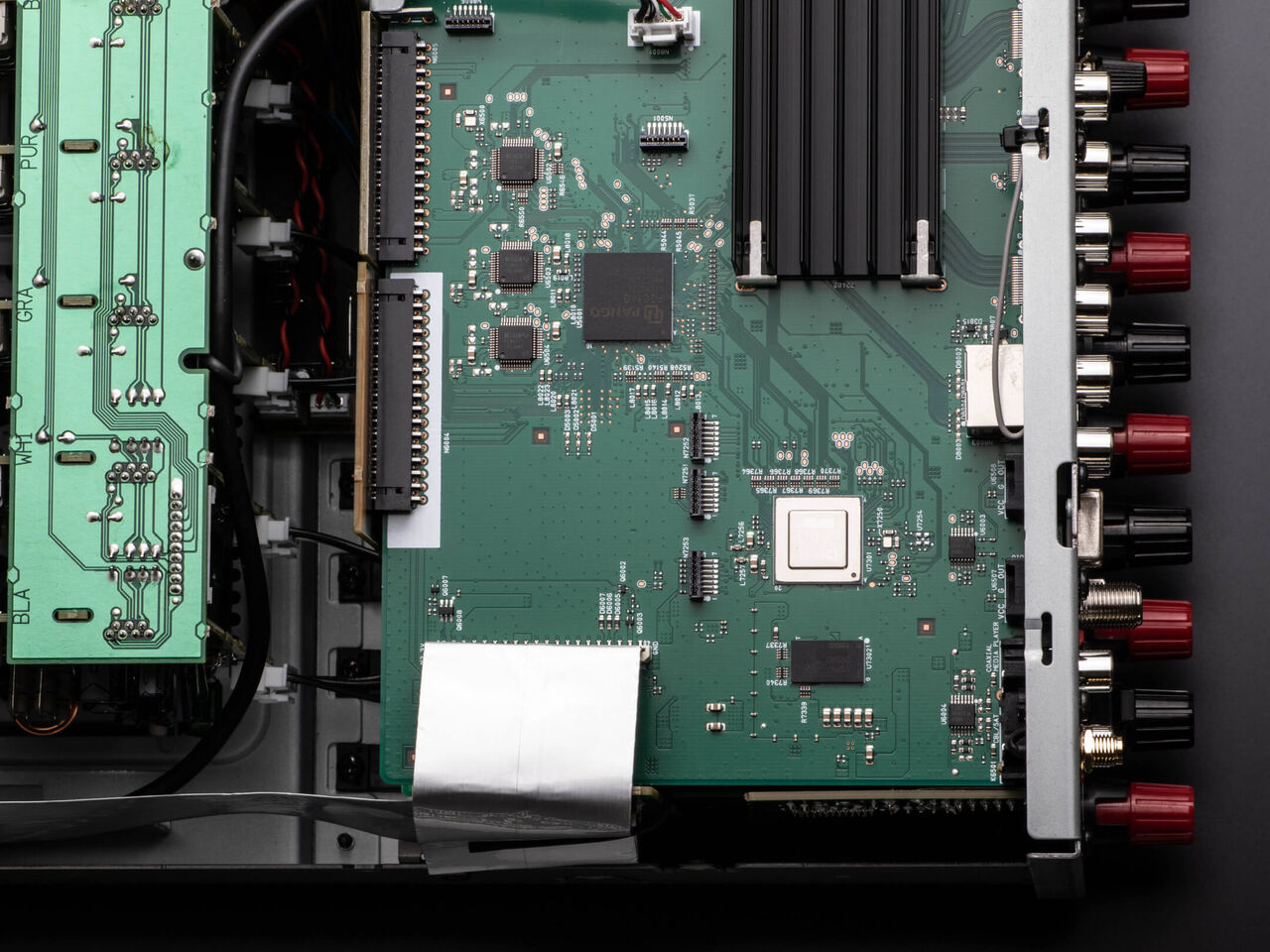

- Alpha Processing: AL32 Processing Multichannel
- AudysseyMult: EQ XT32
- Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
- Audyssey LFC: Yes
- Dirac Live Upgradability: Yes
- Compressed Audio Restorer: Yes
- Discrete Power Amplifier: Yes
- D.D.S.C. HD Digital: Yes (32 bit)
- Pure Direct: Yes
- Clock Jitter Reducer: Yes
- Alpha Processing: AL32 Processing Multichannel
- AudysseyMult: EQ XT32
- Audyssey Dynamic EQ, Dynamic Volume: Yes, Yes
- Audyssey LFC: Yes
- Dirac Live Upgradability: Yes
- Compressed Audio Restorer: Yes
Network
- Media Server: Yes
- HEOS Wireless Multi-Room Technology: Yes
- Alexa / Google Voice Assistant / Apple HomePod: ,Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz)
- AirPlay 2: Yes
- TuneIn: Yes
- Spotify Connect: Yes
- Pandora: Yes
- SiriusXM: Yes
- Roon Tested: Yes
- HEOS App Control: Yes
- Compatible with Remote APP for Smart PhonesDenon 2016 AVR Remote
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
- Media Server: Yes
- HEOS Wireless Multi-Room Technology: Yes
- Alexa / Google Voice Assistant / Apple HomePod: Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC: Yes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAV: Yes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit): Yes, Yes, Yes
- DSD Audio Streaming: Yes (2.8/5.6MHz)
- AirPlay 2: Yes
- TuneIn: Yes
- Spotify Connect: Yes
- Pandora: Yes
- SiriusXM: Yes
- Roon Tested: Yes
- HEOS App Control: Yes
- Compatible with Remote APP for Smart Phones: Denon 2016 AVR Remote
- Ethernet Ports: Yes
- Wi-Fi: Yes
- Bluetooth: Yes
Multi-room CI
- Multi-Room Zones: 3
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out: Yes, Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control, RS232 Control, Web Control, App Control: Yes, Yes /Yes, Yes
- Remote In / Out: Yes, Yes
- DC Trigger Output: 3
- HDMI Diagnostics: Yes
- Multi-Room Zones: 3
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog: Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out: Yes, Yes
- Zone HDMI Output from HDMI Source: Yes
- IP Control, RS232 Control, Web Control, App Control: Yes, Yes /Yes, Yes
- Remote In / Out: Yes, Yes
- DC Trigger Output: 3
- HDMI Diagnostics: Yes

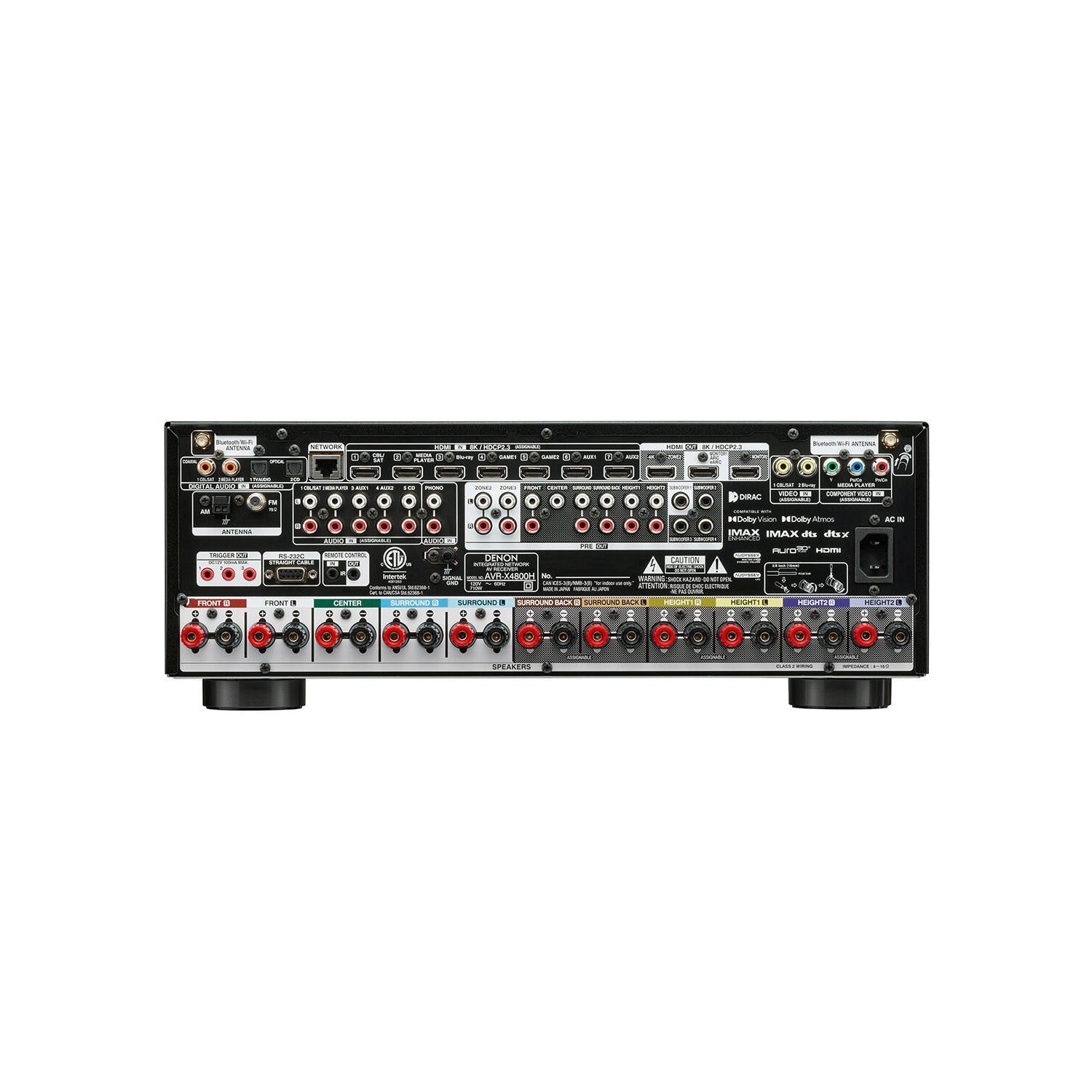

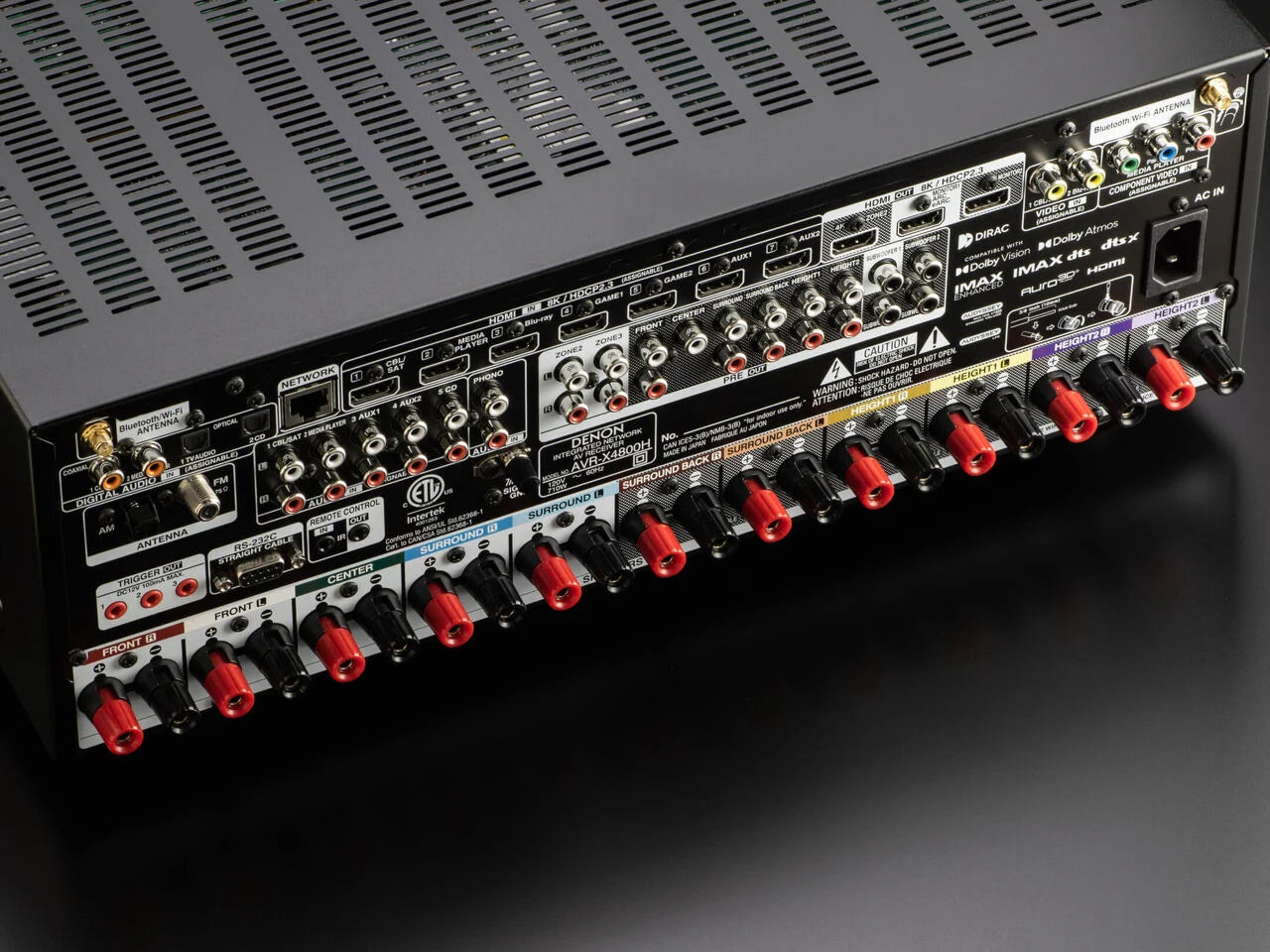

Inputs Outputs
- HDMI In, Out:, 7, 3
- Multi-Room Video Out: Video, HDMI: No, Yes
- Analog In, Out: 5, No
- Phono (MM) In: Yes
- Digital In: Optical, Coaxial: 2, 2
- Multi-Room Out: Analog, Digital2, No
- Multichannel Pre-out: Yes (11.4)
- Subwoofer Out: 4 (independent)

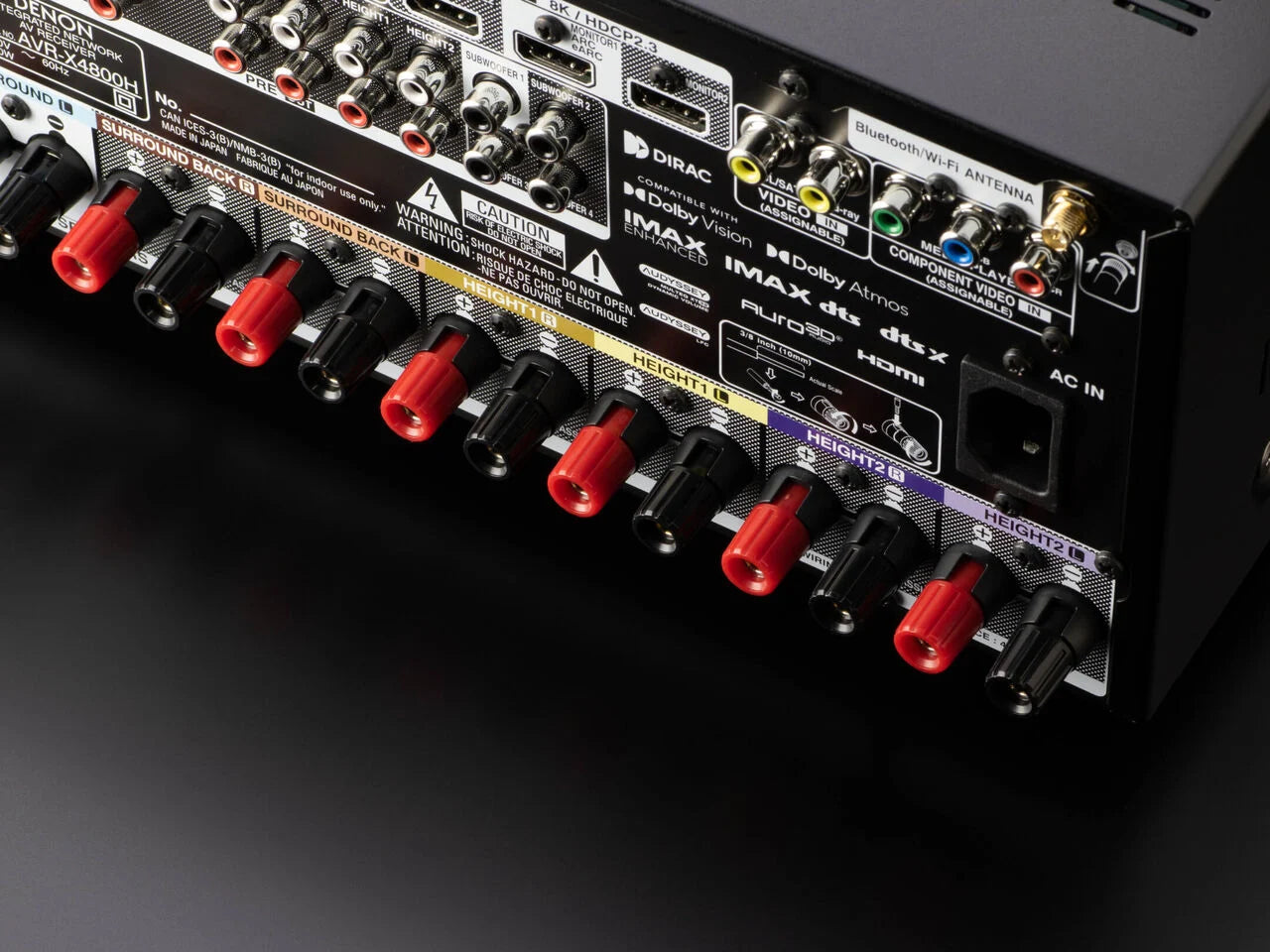

- Speaker Terminal: Gold-Plated Screw, Regular Screw: No, Yes
- Number of Speaker Terminals: 11
- Speaker: A / BAssignable
- Bi-amp Drive: Assignable
- Multi-Room Speaker Terminal: Assignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone: Yes, No, No
- AM/FM Tuner: Yes
- HDMI In, Out: 7, 3
- Multi-Room Video Out: Video, HDMI: No, Yes
- Analog In, Out: 5, No
- Phono (MM) In: Yes
- Digital In: Optical, Coaxial: 2, 2
- Multi-Room Out: Analog, Digital: 2, No
- Multichannel Pre-out: Yes (11.4)
- Subwoofer Out: 4 (independent)
- Speaker Terminal: Gold-Plated Screw, Regular Screw: No, Yes
- Number of Speaker Terminals: 11
- Speaker A / B: Assignable
- Bi-amp Drive: Assignable
- Multi-Room Speaker Terminal: Assignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB: No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone: Yes, No, No
- AM/FM TunerYes
Specifications
- Number of Power Amps: 9
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 165W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 235W
- Number of Power Amps9
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 165W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 235W
General
- Metal Front Panel: Yes

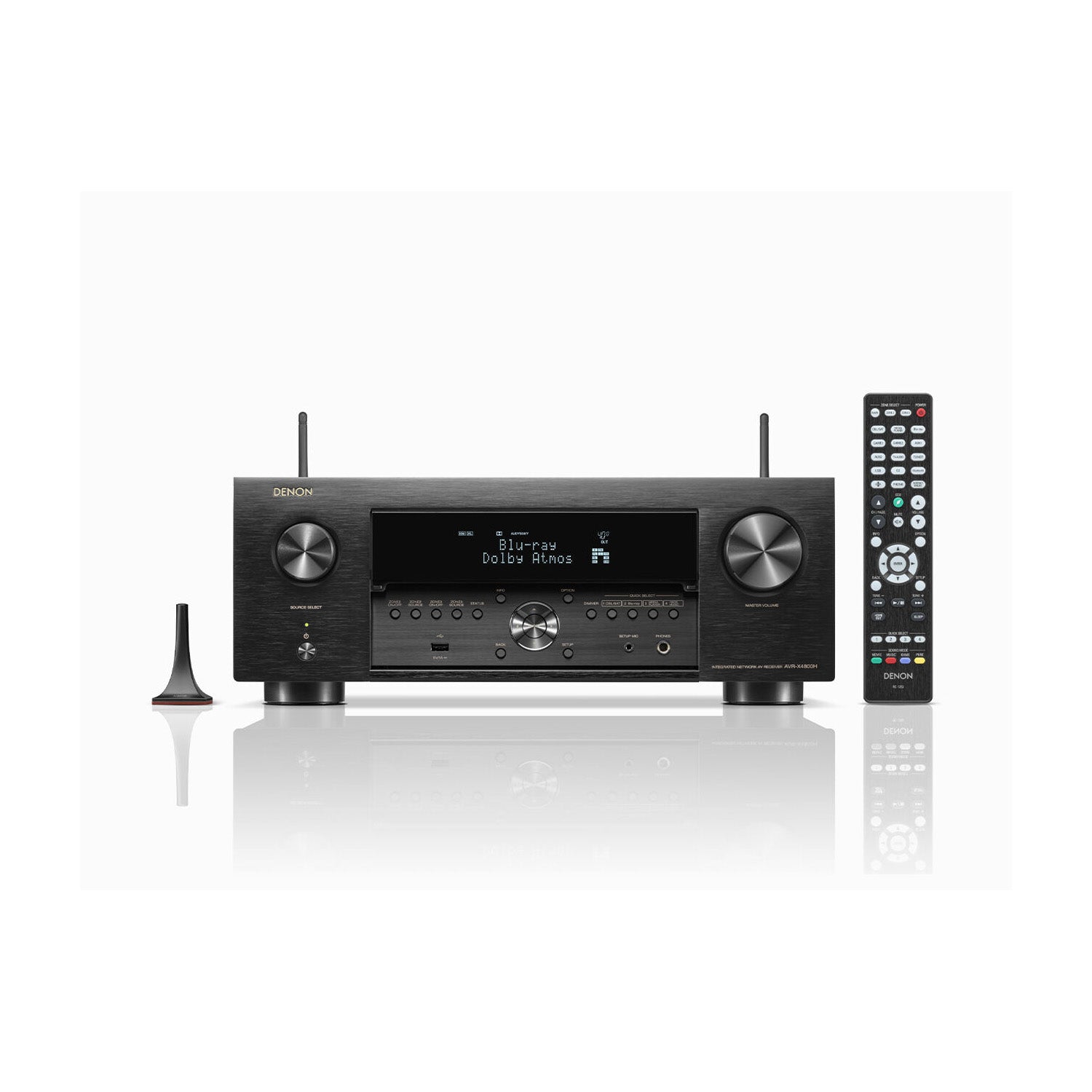

- System Remote Control: RC-1252
- Pre-Programmed, Learnable, LCD Display: Yes, No, No
- Power Consumption in W: 710
- Power Consumption No-Sound (ECO On / Off) in W: 65W/110W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
-
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches: 17.1 x 15.3 x 6.6
( 17.1 x 15.3 x 9.3 )
- Weight in LBS : 29.1
- Weight in LBS (Packaging): 34.9
- Metal Front Panel: Yes
- System Remote Control: RC-1252
- Pre-Programmed, Learnable, LCD Display: Yes, No, No
- Power Consumption in W: 710
- Power Consumption No-Sound (ECO On / Off) in W: 65W/110W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0
