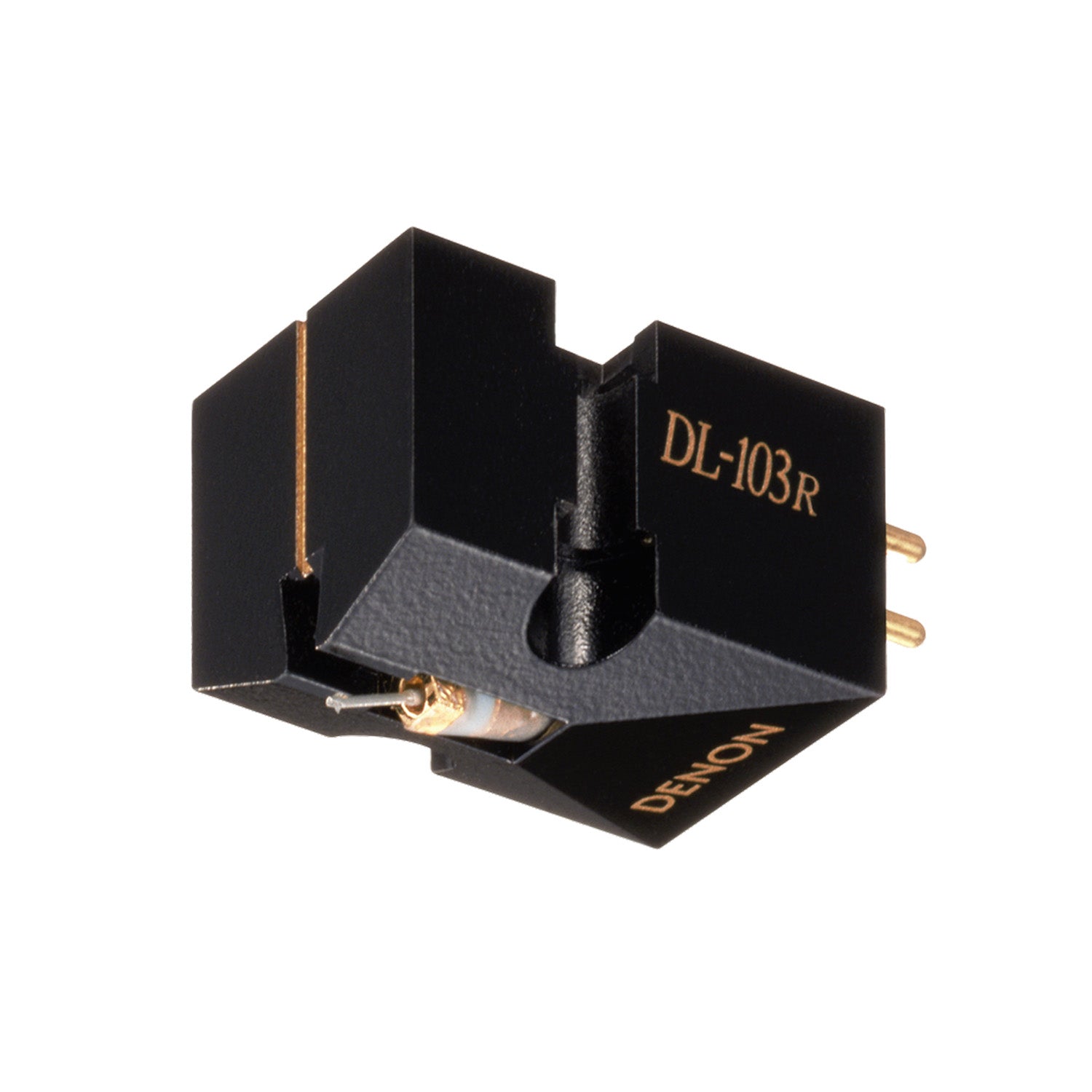

Denon DL-103R Moving Coil Cartridge

Denon DL-103R Moving Coil Cartridge

The DL-103R is the evolved and reengineered version of Denon's original Moving Coil Cartridge. Designed to bring all your vinyl favourites to life for years to come.

Specifications

• Type: Moving coil (MC)
• Output: 0.3 mV
• Channel Balance: 1dB Max. (1kHz)
• Channel Separation: 25 dB Min. (1 kHz)
• Output Impedance: 40 ohms
• Suggested Loading: 100 ohms min.
• Stylus: 16.5 Micron round tip
• Frequency Range: 20 Hz to 45 kHz
• Tracking Force: 2.5g ± 0.2g (2.3~2.7g)
• Compliance: 5 x 10-6 cm/dyne
• Weight: 8.5g

Key Features

Features

• Type: MC
• Output Voltage: 0.25 mV
• Frequency Range: 20 Hz to 45 kHz
• Output Impedance: 14 ohms
• Weight: 8.5 g
