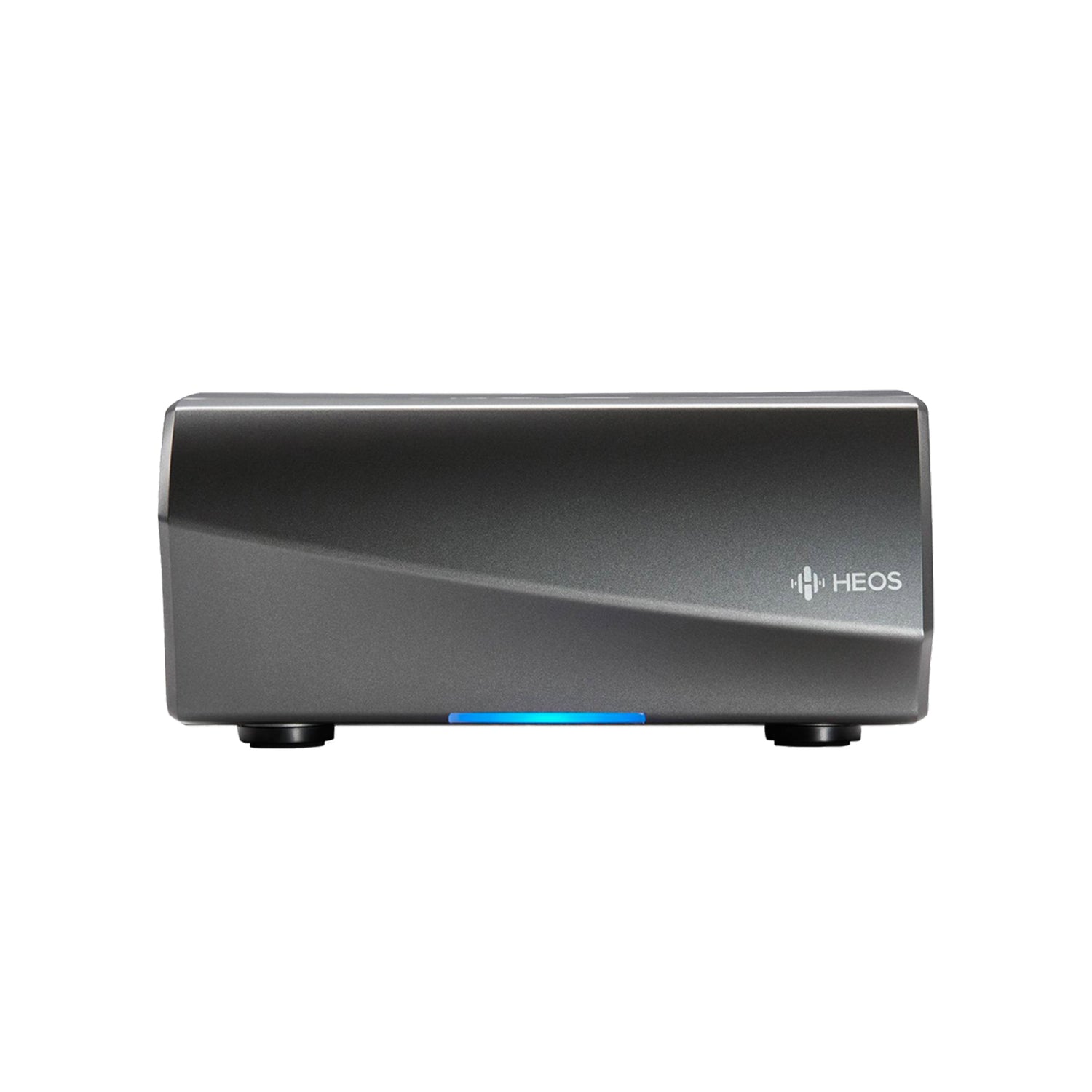

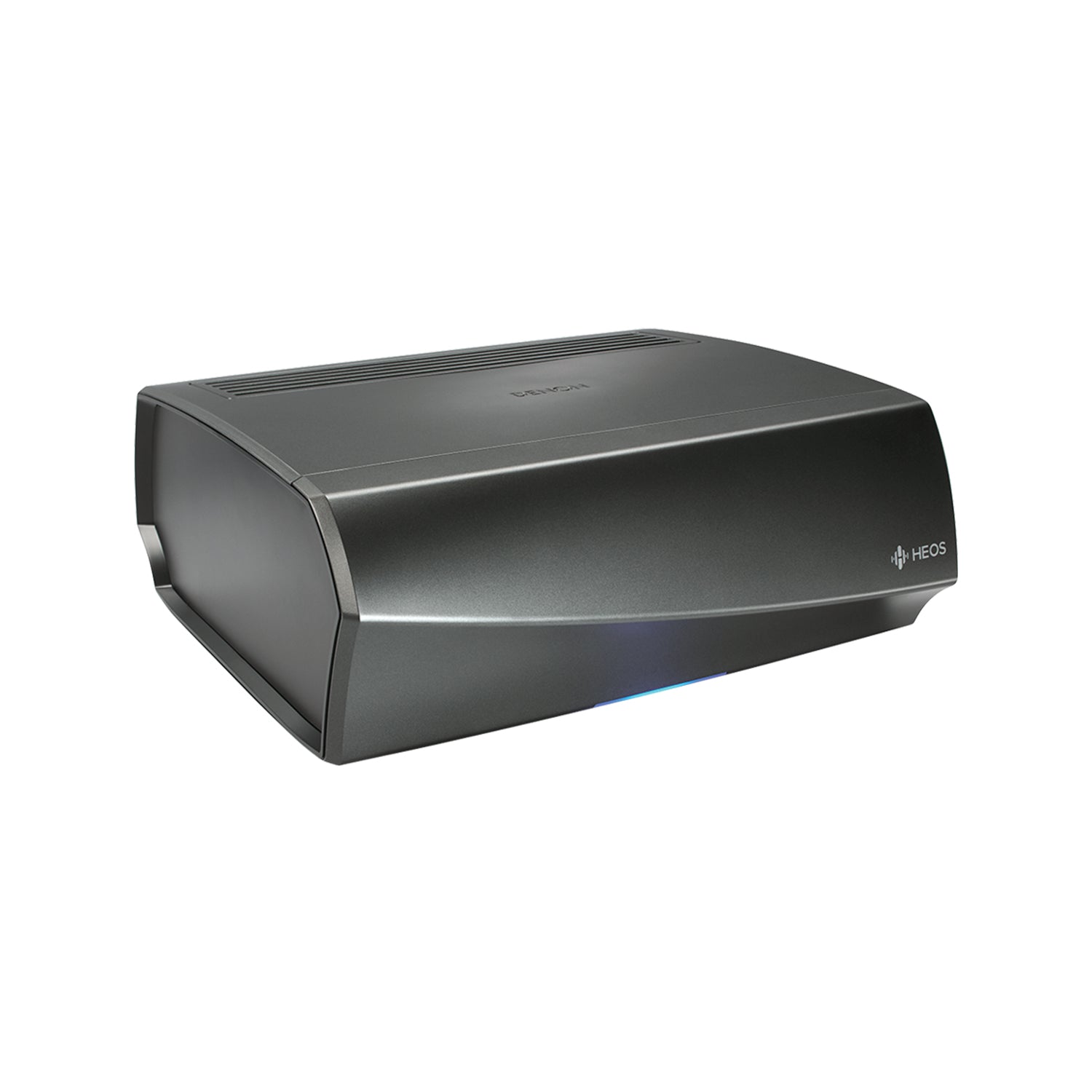

Heos Link HS2

Heos



HEOS Link HS2

  • NEW High Resolution Audio Support
  • NEW Bluetooth® Integrated
  • Turn any stereo system into a wireless zone.
  • Play your favourite music from a range of streaming services as well as your smartphone, tablet, USB drives or other external device.
  • Control your Denon receiver, integrated amplifier or mini system right from the HEOS app.
  • .

      - HEOS LINK HS2

      The HEOS Link is part of the HEOS wireless multi-room sound system that enables you to enjoy your favourite music anywhere and everywhere around your home. By utilising your existing wireless home network and the HEOS app on your iOS or Android device, you can explore, browse, and play music from your own music library, from online streaming music services, and from thousands of internet radio stations.


      With the HEOS Link, you can add HEOS multi-room audio to an existing music or home theatre audio system, and you can play different songs in different rooms or the same song in every room.


      The versatile HEOS Link features built-in dual band "N" wireless technology for quick and easy connection to your home network. In addition to the built-in wireless function, the HEOS Link is also equipped with an RJ-45 Ethernet port for hard wire connection to your LAN. The USB port lets you connect a portable USB drive, and you can also use the USB connection to charge your portable device.


      In addition to the stereo pre-amp outputs, there's also a sub output for connection to a powered subwoofer. Both coaxial and optical digital audio outputs are included for compatibility with the widest range of equipment, and the unit features an optical digital audio input. The HEOS Link is also equipped with a stereo line input (via RCA jacks) as well as an additional auxiliary input with a 3.5mm jack for direct connection to a portable player.


      As with our HEOS wireless speaker models, you'll be able to stream your favourite music tracks and control the HEOS Link with our HEOS App, which is available in both iOS and Android versions. With the HEOS App, you can choose to listen to music tracks on your smartphone, tablet or portable audio player. You also can listen to your choice of internet radio stations, and you can also listen to your favourite music streaming service.


      Our exclusive digital technology provides precise audio synchronisation (within microseconds) to ensure top audio fidelity and stereo imaging quality.

      The HEOS Link provides additional convenience for owners of Denon audio components or systems. Connect the included infrared emitter to the HEOS Link IR output and place it so that it's near the front panel of your Denon component. Or, if your Denon has a direct IR input jack, you can connect the HEOS Link via the supplied IR direct cable. Then, via the HEOS App, you can turn your Denon system on and select the appropriate input and enjoy your favourite music tracks. You can choose to listen to different songs in different rooms or play the same song in all rooms. There's also a 12V trigger output that lets you connect the HEOS Link to other devices or products that feature a 12V trigger input, such as motorized drapes or a drop-down motorized front projection screen.

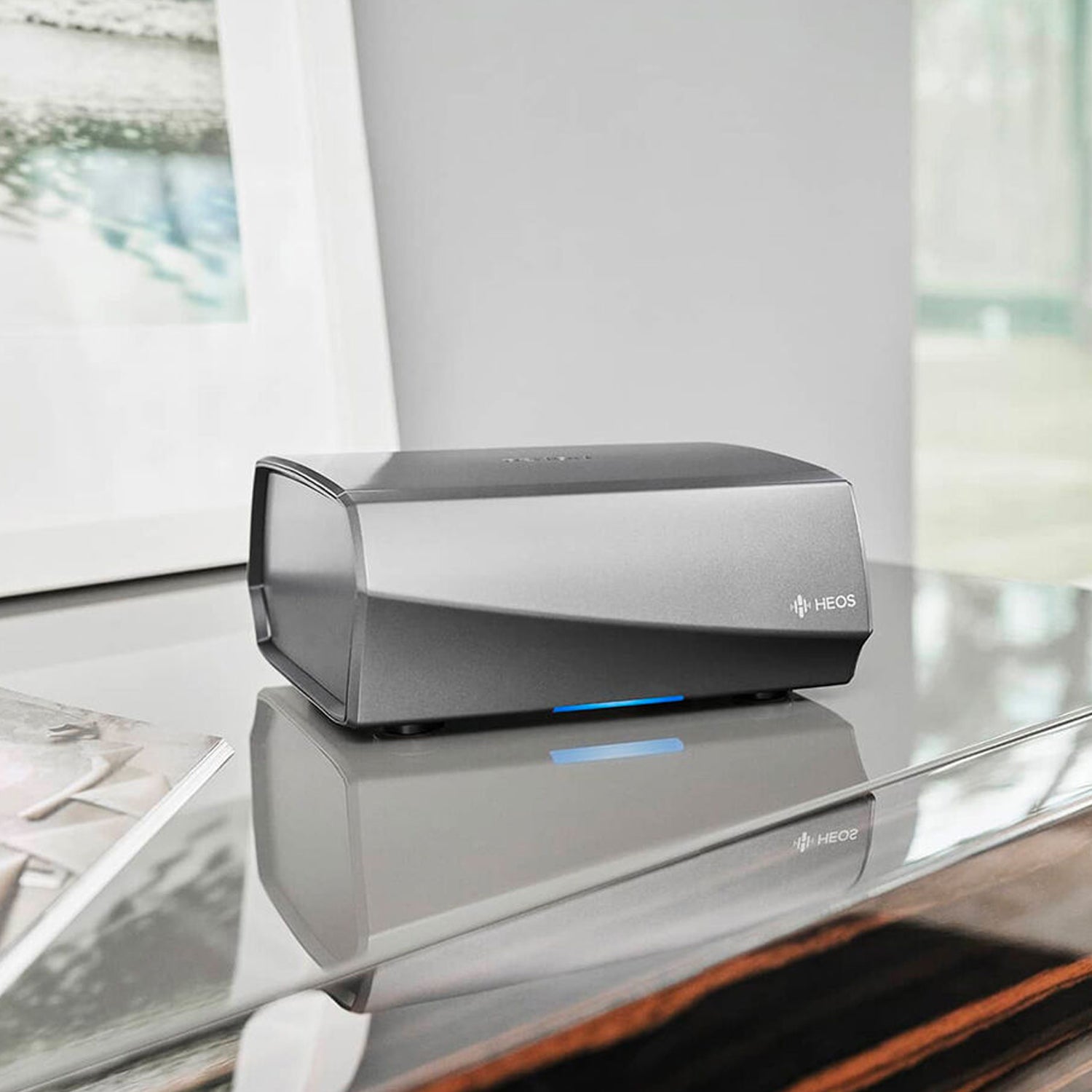

      The elegant HEOS Link enclosure features stylish silver accents, and for convenience, there are volume and mute controls discreetly placed on the side panel.

      • TURN ANY RECEIVER, AMPLFIIER OR HOME STEREO SYSTEM INTO A HEOS ZONE
      • NOW OFFERING HIGH RESOLUTION AUDIO
      • PLAY ANY SONG IN ANY ROOM ON DEMAND FROM STREAMING SERVICES VIA BLUETOOTH OR WI-FI AUDIO STREAMING.
      • DENON AVR, HIFI AND MINI POWER, INPUT AND VOLUME CONTROL
      • 12V TRIGGER OUTPUT FOR EXTERNAL DEVICE TURN-ON
      • SUBWOOFER PRE-OUT
      • OPTICAL DIGITAL AND ANALOGUE INPUTS
      • COAXIAL AND OPTICAL DIGITAL OUTPUTS
      • VARIABLE ANALOGUE OUTPUT
      • MULTI-ROOM FUNCTION
      • SUPERIOR SOUND
      • EASY TO USE APP
      • EASY SETUP
      • PLAY AND SOURCE ON ANY SPEAKER FROM ANY SMART DEVICE: STREAMING CLOUD SERVICES, DIRECTLY FROM PHONE/TABLET, USB, NETWORK STORAGE, AUX IN.
      • BETTER INDUSTRIAL DESIGN

        - HEOS LINK HS2

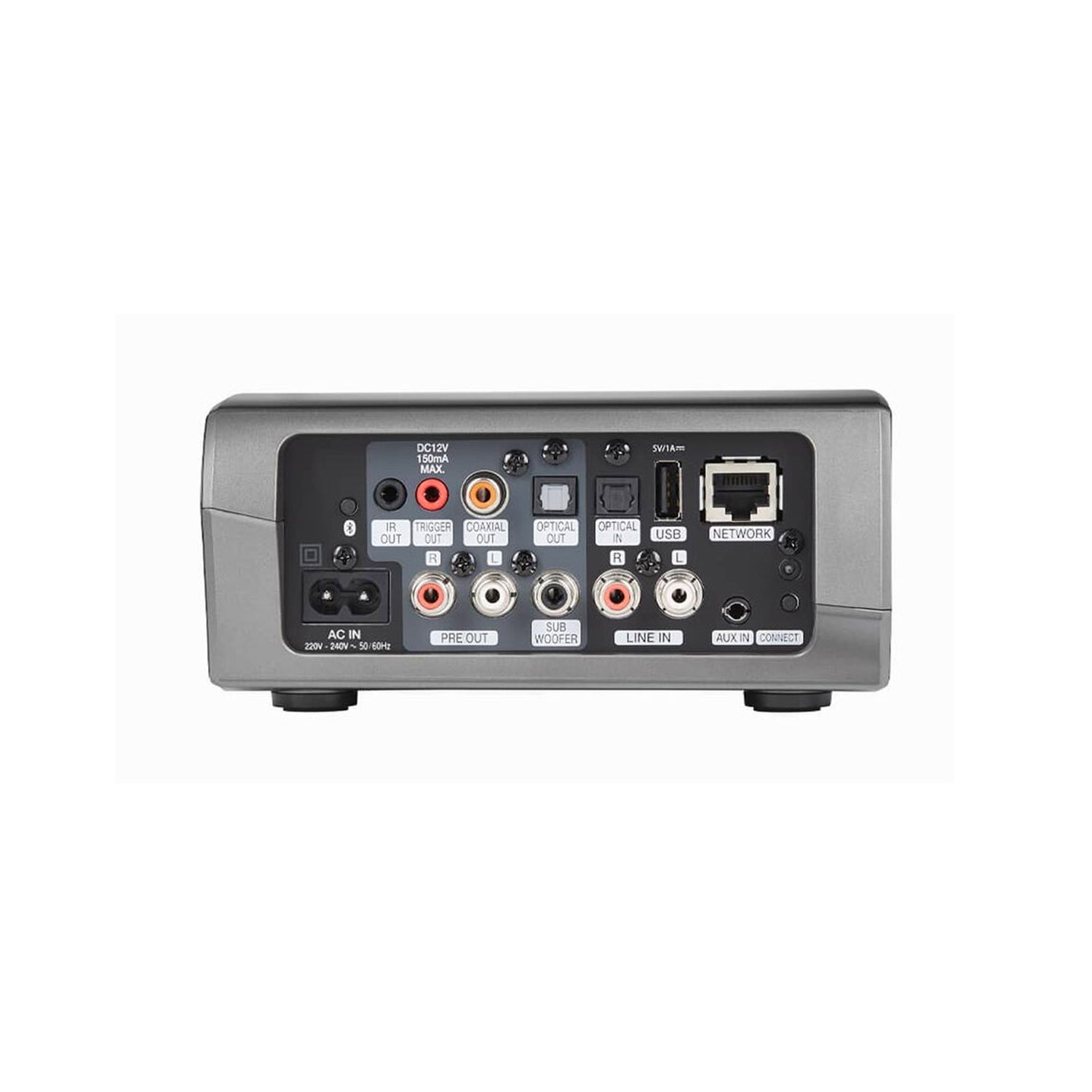

        Audio System

        Fixed/Variable Analog OutputAdd the HEOS Link to any existing stereo system using the high quality analog output.

        Digital Fiber Optic and Coxial Ouputs Fiber optic and coaxial outputs allow for stereo LPCM digital audio output to compatible audio systems.

        Auxiliary Analog Line Input The 3.5 mm stereo analog auxiliary line input lets users connect a device with analog stereo output directly to the HEOS Link.

        Optical Digital Input The optic digital line input lets users connect a device with an optical digital output directly to the HEOS Link.

        Subwoofer Pre-out Connect any powered subwoofer to the HEOS Link for additional bass.

        External Audio System Control The HEOS Link comes with an IR emitter output which allows for automatic power, source selection and volume control of Denon A/V receiver, integrated amplifiers and mini systems.

        12 Volt Trigger Output The 12V trigger output lets you connect the HEOS Link to other devices that feature 12V trigger inputs such as power amplifiers, motorized drapes or front projection screens.

        Power Amplifier Rated output-

        Analogue output Output level FIX : 2.0 Vrms
        (10 kΩ/kohms)/Variable

        Total Distortion ANALOGUE IN: 0.003 %(1 kHz)

        SN ratio: ANALOGUE IN100 dB

        Frequency response 10 Hz to 100 kHz: +1, -3dB

        Music Sources

        Music Subscription Services The HEOS app lets you choose from popular subscription streaming services including Spotify, TuneIn, SoundCloud, TIDAL, Deezer, Napster and Mood:Mix. More services will be added soon.

        External Inputs Analogue or optical digital sources connected to the HEOS Amp or other HEOS players.

        Internet Radio Station sStreaming AAC, MP3, WMA (via the TuneIn service)

        Music Formats Supported Audio Formats Supported:
        WMA: Up to and including 192kbps
        AAC and MP3: Up to and including 320kbps
        WAV, ALAC and FLAC: Up to and including 24-bit/192kHz.
        DSD: 2.8MHz, 5.6MHz

        Bluetooth Supported Play on one speaker or add other HEOS speakers in party mode.

        Picture Formats Supported HEOS Link HS2 supports JPG, PNG, BMP and GIF album art picture formats.

        USB Drives Supported HEOS Link HS2 supports USB thumb drives via the built-in USB port. Music content on a USB drive can be played back locally, or on any or all HEOS players on your network.

        Music Stored On Phone/Tablet iTunes music stored locally on your iOS device or music files on your Android or Kindle Fire device.

        NAS (Network Attached Storage) Play from your DLNA compliant music servers.

        “Availability of music services may vary by region. Not all services may be available at time of purchase. Some services may be added or discontinued from time to time based on decisions of the music service providers or others. Visit www.denon.co.uk/uk/musicservices for announcements and details.”

        Networking*

        Wireless Connection Supports latest dual band wireless networks (including 802.11 a/b/g/n/ac standards).

        Wired Connection Connect to your home or office LAN system via the RJ-45 wired LAN port.

        General

        Power Supply AC 220 - 240 V, 50/60 Hz

        What's In The Box HEOS Link HS2, AC power cord, 3.5mm setup cable, RCA cable, Ethernet cable, Quick Start guide, IR emitter cable, IR direct cable

        Controls & Indicators Volume up/down
        Mute / Mute button LED indicator
        Multicoloured LED status indicator
        Network ‘connect’ button (rear)
        Bluetooth ‘connect’ button (rear)

        Weight 1.3 kg

        Multiple Language Support English, German, French, Spanish, Italian, Dutch, Russian, Swedish, Norwegian, Danish, Polish

        Dimensions (H x W x D) 74 x 155 x 150 mm

        Operating Temperature Range 5°C~35°C

        Product Finish Silver
