Marantz

Marantz AV8805A

Marantz AV8805A

$7,000.00 AUD

$7,000.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Marantz AV8805A

The Marantz AV8805A pre-amplifier sets the standard for audiophile home cinema with 13.2 channel processing and full 8K pass-through capabilities.

Specifications

Classic Design
13.2 Channels
8 HDMI Inputs plus eARC
8K Ultra HD
3D Audio
HEOS Built-in
3 Year Warranty

Key Features

Multichannel Surround

DTS HD Master / DTS:X / DTS:X ProYes / Yes / Yes (update)
DTS Neo:X / DTS Neural:XNo / Yes (11ch)
DTS Virtual:XYes
IMAX EnhancedYes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos MusicYes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby SurroundNo / Yes
Auro 3DYes
360 Reality Audio / MPEG HNo
Audyssey DSXNo
Multichannel StereoYes
Max Number of Processing (Preamp) Channels13.2

Sound Enhancements

Network

HEOS Multi-room and StreamingYes
Bluetooth Re-transmit for Bluetooth headphonesNo
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Network Audio SharingYes
Lossy formats: MP3 / WMA / AACYes / Yes / Yes
Lossless formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
DSD Audio StreamingYes (2.8/5.6MHz)
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless PlaybackYes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio StreamingYes (AirPlay2)
Internet radioYes (TuneIn)
Spotify Connect* / Tidal* / Deezer* / others *Yes (connect)
PandoraYes
SiriusXMYes
Other Streaming Services *Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon TestedYes
Compatible with Remote APP for Smart PhonesMarantz 2016 AVR Remote
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes

HDMI

HDMI Inputs: Back / Front7 / 1
HDCP2.3 supportYes
HDMI Outputs: Main / Zone2 / 1
Video Conversion Analog -> HDMIYes
Analogue to HDMI scalingup to 8K 60/50
HDMI to HDMI Scalingup to 8K 60/50
GUI Overlay on HDMIYes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz ABYes / Yes
HDMI 2.0: 3D / 4K / CEC / ARCYes / Yes / Yes / Yes / No
Enhanced ARCYes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gamingYes
Variable Refresh Rate / Quick Flame Transport / Quick Media SwitchingYes / Yes / Yes
3D Signal Pass-ThroughYes
8K signal pass-through / scaling / GUI overlayYes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI OverlayYes / Yes / Yes
HDMI Pass-Through in Standby ModeYes
Picture Adjust / Noise ReductionYes / Yes
CECYes
DSD Audio CapabilityYes
Audio Return ChannelYes
Auto LipSyncYes

Multi-Room CI

HEOS Multi-Room IntegratedYes
HEOS Link Compatibility: IR/ IPYes / Yes
Multi-Room Zones3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / PreoutNo / Yes
Zone HDMI Output from HDMI SourceYes
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
IR Flasher InYes
Marantz Remote BusYes
DC Trigger Output2
HDMI DiagnosticsYes

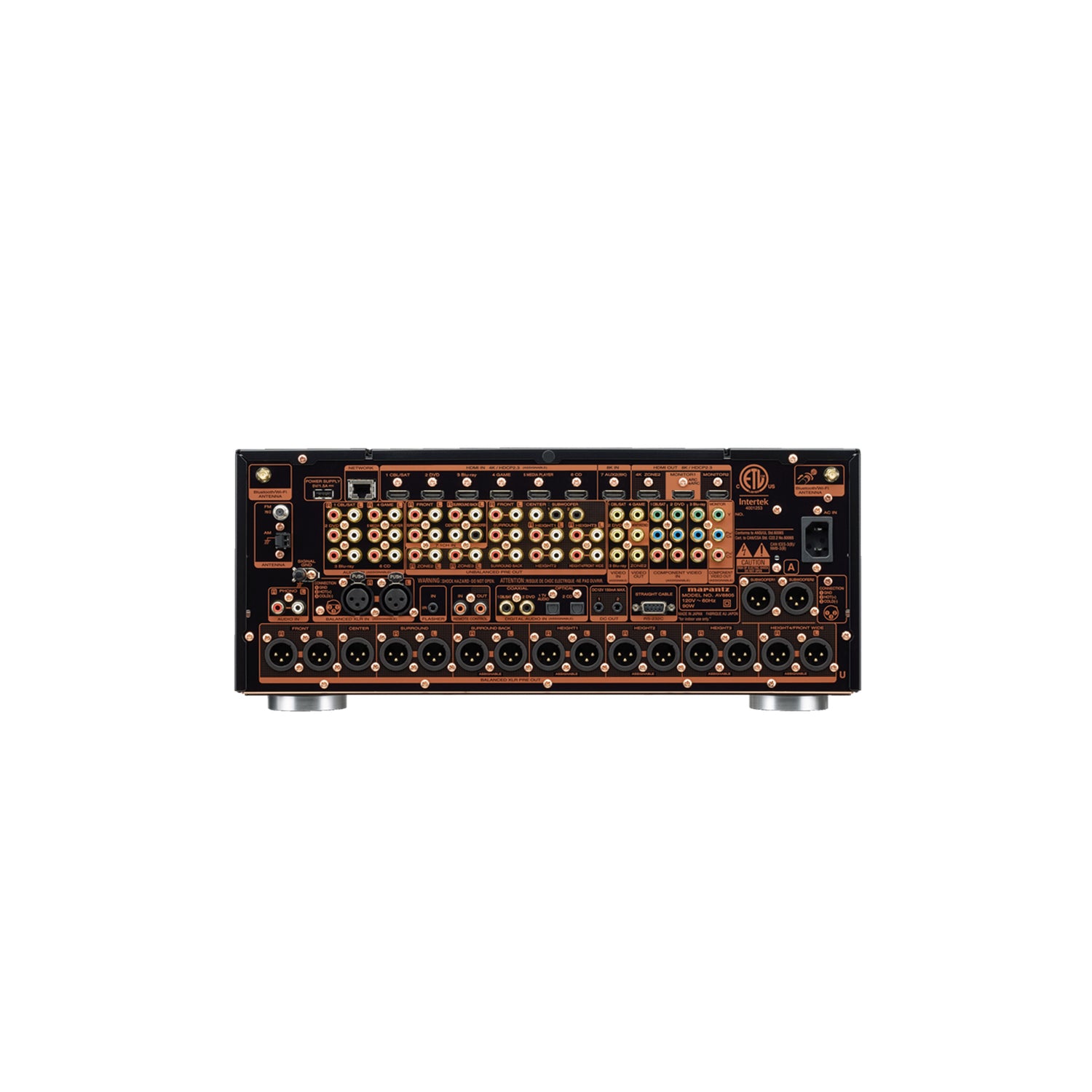

Inputs Outputs

Composite In / Out4+1 / 2
Component In / Out3 / 1
HDMI In / Out7+1 / 3
Multi-Room Video Out: Video / HDMIYes / Yes
Analogue In / Out6+1 (1x XLR) / No
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 2
Multi-Room Out: analog / digital2 / No
Multichannel Pre OutYes (15.2 RCA & 15.2 XLR)
Subwoofer Out2 (independant)
7.1 multichannel inputYes
Speaker A / Bassignable pre out
Bi-amp driveassignable pre out
Multi-Room Speaker Terminalpre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBYes / Yes / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
AM/FM TunerYes

General

Others
