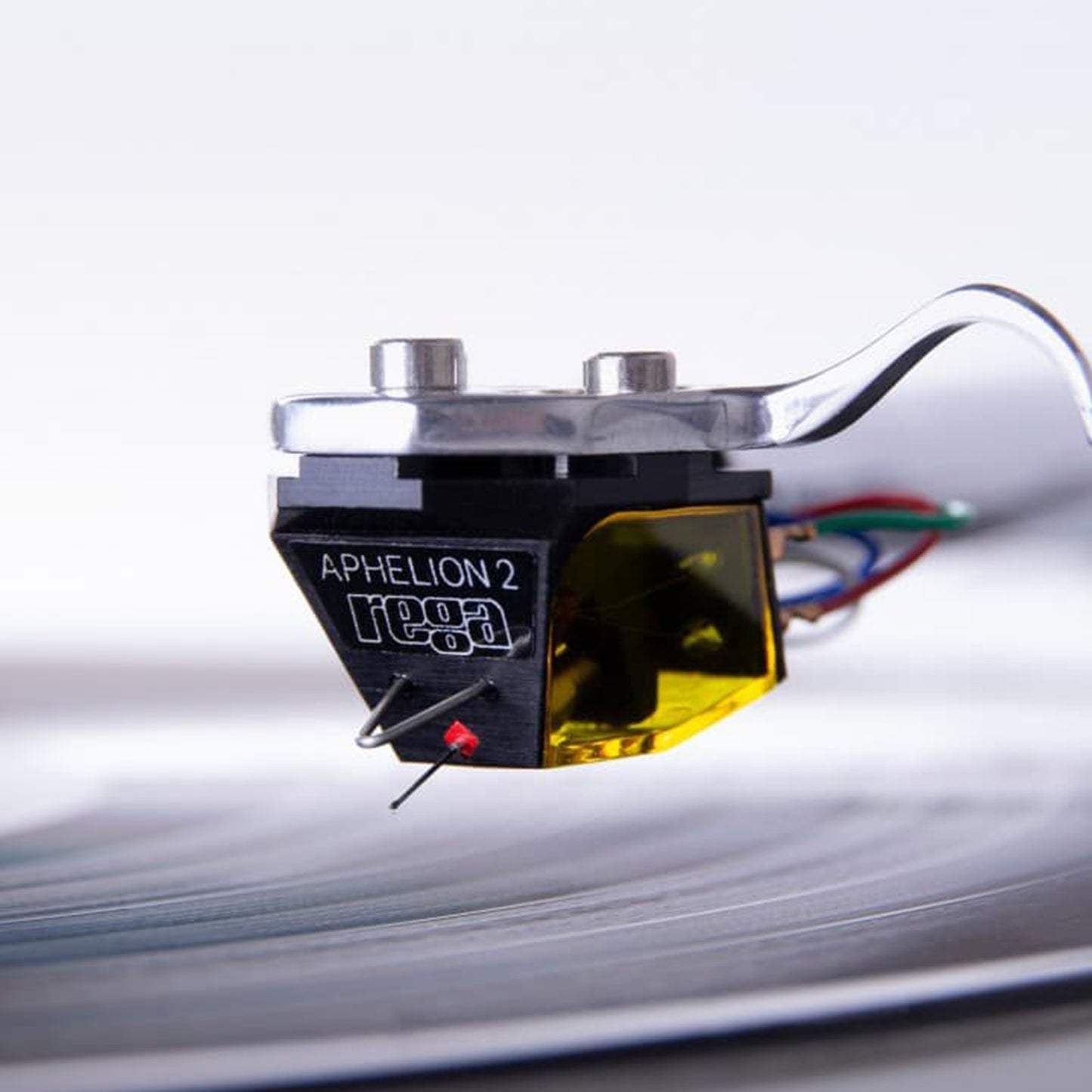

Rega Aphelion 2

Rega Aphelion 2

Aphelion 2 is the 4th generation of our unique handmade moving coil cartridges. Taking the technology developed from the original Aphelion and the latest Apheta 3 to the next level, our engineers have now fine-tuned every aspect of the original designs.

The Ultimate in Micro Engineering and Design

The Aphelion 2 is the ultimate in micro engineering and design. Our unique hand-wound micro cross and coil assembly is built directly onto a Boron rod cantilever. The advanced ‘fine line’ profile nude diamond is then mounted through 90 degrees which offers extreme levels of stiffness and control over the stylus. This design requires a ‘zero tolerance’ approach to engineering to achieve the highest level of performance from a Rega cartridge to date. Designed to complement the reference range of Rega turntables including the Naiad.

KEY FEATURES

• Graded zero tolerance black anodised aluminium body
• Boron rod cantilever
• ‘Fine line’ profile, nude diamond stylus
• Iron micro cross and coil assembly making one of the worlds smallest MC generators
• Worlds most powerful minaturised neodymium magnet
• High specification fine wire 0.018 mm
• Lifetime warranty against manufacture defects

Specification

• Tracking Pressure: 1.9 g
• Input Load Impedance: 100 Ω
• Output Impedance: 10 Ω
• Nominal Output Voltage: 350 μV
• Channel Balance: ≥ 10 μV
• Separation: ≥ -29 dB
• Mass: 6 g

LOAD SETTINGS FOR ADJUSTABLE MC STAGES

• Impedance: 100 Ω
• Capacitance: 1000 pF
• Gain Setting: High ('On' position for Rega phono stages)
